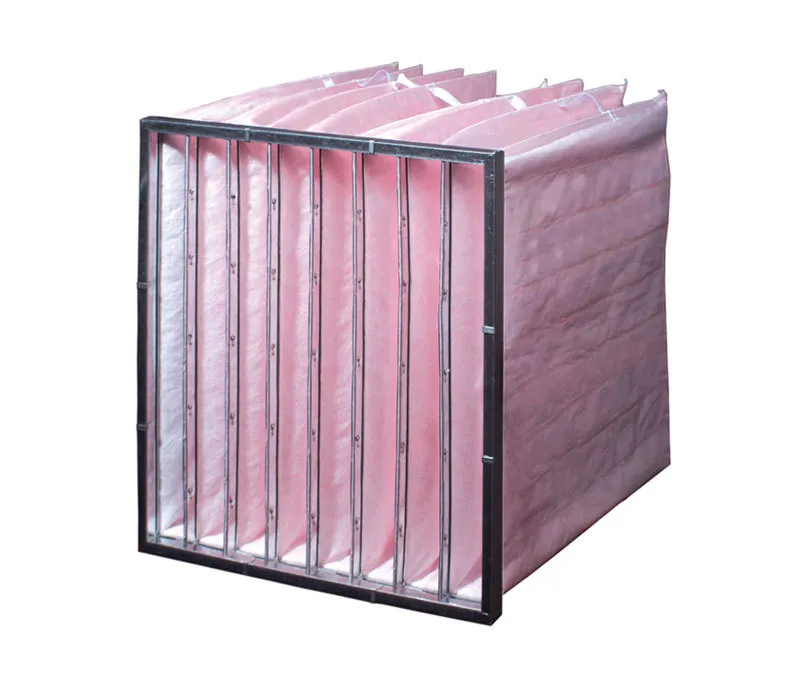

F9 Pocket / Bag Filters — AHU Secondary Filtration, South Africa
The Airtech pocket filter range — for commercial and industrial AHU applications. Synthetic media, multi-pocket construction, galvanised steel and aluminium support frames in all standard AHU sizes. For commercial offices, healthcare general areas, pharmaceutical production and critical commercial buildings. Stock held in Pretoria; call with your AHU frame size and pocket count and we confirm availability the same day.
Airtech Pocket Filter Grade
F9 — Final filtration for pharmaceutical production areas, hospital theatres and antechambers, ISO 8 cleanroom supply air, and high-specification commercial buildings requiring low particulate counts. EN779 F9 ≥95% average efficiency at 0.4µm.
Not sure which grade you need? Call Nick Els on +27 74 159 1634 — describe the application, building type, and any compliance standard you are working to, and we will confirm the correct grade.
Technical Data
| Filter Class | F9 (EN779:2012) |
| Standard Size (330mm) | 595 × 595 × 330 mm (6-pocket) |
| Narrow Size (330mm) | 295 × 595 × 330 mm (4-pocket) |
| Deep Format (600mm) | 595 × 595 × 600 mm (6-pocket) |
| Media Type | Synthetic moisture-resistant |
| Frame | Galvanised steel + aluminium supports |
| Initial Resistance (595×595×330) | 225 Pa ±10% at 3 400 m³/h |
| Initial Resistance (295×595×330) | 185 Pa ±10% at 1 700 m³/h |
| Initial Resistance (600mm) | 105 Pa ±10% at 3 400 m³/h |
| Final Resistance | 400–450 Pa (replace at this reading) |
| Washable | No |
| Avg. Efficiency | F9 ≥ 95% at 0.4 µm (captures PM2.5) |
| Weight (595×595×330) | 1.7 kg |
| Weight (295×595×330) | 1.15 kg |
Resistance vs Airflow — 595×595×330mm (6-pocket)
| Airflow (m³/h) | 1500 | 2000 | 2500 | 3000 | 3400 | 4000 | 4500 | 5000 |
|---|---|---|---|---|---|---|---|---|
| Resistance (Pa) | 95 | 125 | 160 | 195 | 222 | 266 | 305 | 345 |
Resistance vs Airflow — 595×595×600mm Deep (6-pocket)
| Airflow (m³/h) | 1500 | 2000 | 2500 | 3000 | 3400 | 4000 | 4500 | 5000 |
|---|---|---|---|---|---|---|---|---|
| Resistance (Pa) | 45 | 60 | 75 | 92 | 106 | 130 | 150 | 170 |
Applications
F9 pocket filters are the secondary filtration stage in commercial HVAC systems — the filter that determines indoor air quality. At ≥95% average efficiency at 0.4µm, F9 captures PM2.5 fine particulate, diesel combustion aerosols, and the fine dust that G4 pre-filters let through. Specified wherever occupant health, regulatory compliance, or equipment protection demands more than coarse filtration alone.
- Commercial offices and retail — IAQ compliance and occupant comfort in high-occupancy buildings. F9 is the secondary filter standard for most commercial HVAC specifications in South Africa.
- Hospitals and healthcare facilities — Secondary filtration upstream of H14 HEPA terminal filters in operating theatre and critical care AHU systems.
- Pharmaceutical manufacturing — Pre-HEPA filtration in GMP Grade B and C cleanroom air handling systems to extend HEPA service life.
- Data centres — ASHRAE TC 9.9 recommends F9 equivalent filtration for data centre air handling. F9 pocket filters with low pressure drop protect sensitive electronics from fine particulate contamination.
- Education and hospitality — High-traffic buildings where IAQ and energy efficiency are both priorities — F9 provides the filtration performance without the pressure-drop penalty of HEPA.
